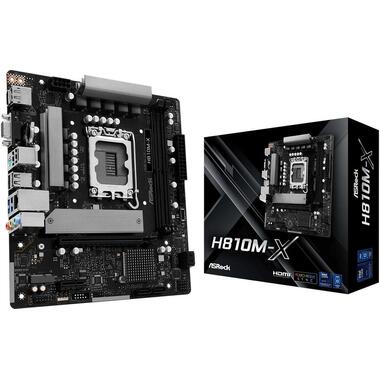

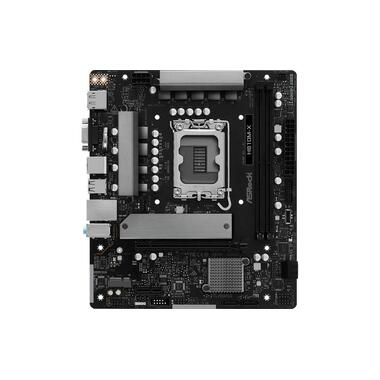

Scheda madre ASRock H810M-X
Immagine 1 di 5
Immagine 2 di 5
Immagine 3 di 5
Immagine 4 di 5
Immagine 5 di 5
Tipo di memoria: DDR5, Socket del processore: LGA 1851, Chipset: H810, Fattore di forma della scheda madre: Micro-ATX, WLAN: No
Specifiche di base
| Numero articolo | 878835 |
|---|---|
| EAN | 4711581490642 |
| Numero di articolo alternativo | 1977461 |
| Marchio | ASRock |
Dimensioni
| Larghezza | 22cm |
|---|
Specifiche aggiuntive
| Breite | 22cm |
|---|---|
| Tiefe | 19.3cm |
| Arbeitsspeicher-Typ | DDR5 |
| HDMI Anschlüsse | 1 |
| WLAN | Nein |
| Chipsatz | H810 |
| DisplayPort Anschlüsse | 1 |
| Prozessorfamilie | Intel Core Ultra 7 (Series 2), Intel Core Ultra 5 (Series 2), Intel Core Ultra 9 (Series 2) |
| RJ-45 Anschlüsse | 1 |
| VGA Anschlüsse | 1 |
| RJ-45 Geschwindigkeit | 2.5 Gbit/s |
| DVI-D Anschlüsse | 0 |
| Audiokanäle | 7.1 |
| USB Type-C Anschlüsse | 1 |
| USB 3.0 Anschlüsse | 5 |
| Prozessorsockel | LGA 1851 |
| Anzahl Arbeitsspeichersteckplätze | 2 |
| Maximal verbaubarer Arbeitsspeicher | 128GB |
| PCI-Express Steckplätze | 1x PCI-Express 4.0 x16, 1x PCI-Express 4.0 x1 |
| M.2 Anschlüsse | 1 |
| USB 2.0 Anschlüsse | 6 |
| Adressierbarer LED Header | 2× |
| CPU Lüfter Stecker | 1× |
| Audio Chip | Realtek ALC897 Audio Codec |
| Mainboard Formfaktor | Micro-ATX |
| RAID Level | Kein |
| RGB LED Header | 1× |
| SATA-III Anschlüsse | 4 |
| USB 2.0 Header Anschlüsse | 1 |
| USB 3.0 Header Anschlüsse | 2 |
| 24-Pin ATX Stromanschlüsse | 1× |
| 8-Pin ATX 12V | 1× |
| Chassis Lüfter Stecker | 1× |
| PS/2 Combo Anschluss | 1 |
