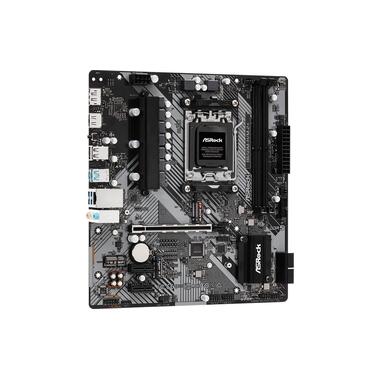

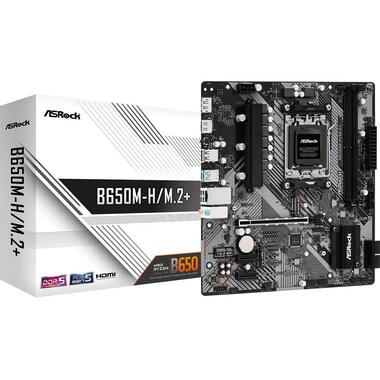

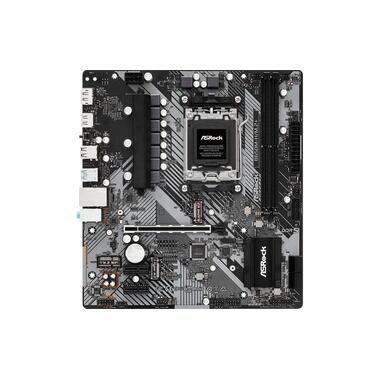

Scheda madre ASRock B650M-H/M.2+
Immagine 1 di 6
Immagine 2 di 6
Immagine 3 di 6
Immagine 4 di 6
Immagine 5 di 6
Immagine 6 di 6
Memoria: DIMM DDR5; WLAN: No, Porte RJ-45: 1, Velocità RJ-45: 10/100/1000 Mbit/s; Porte SATA-III: 4; Porte M.2: 1; 1x PCI-Express 4.0 x16/2x PCI-Express 4.0 x1; Socket AM5 con chipset B650 e fattore di forma Micro-ATX
Specifiche di base
| Numero articolo | 877580 |
|---|---|
| EAN | 4710483943768 |
| Numero di articolo alternativo | 1977447 |
| Marchio | ASRock |
Dimensioni
| Larghezza | 24.4cm |
|---|
Specifiche aggiuntive
| Breite | 24.4cm |
|---|---|
| Tiefe | 22.6cm |
| Arbeitsspeicher-Typ | DDR5 |
| HDMI Anschlüsse | 1 |
| WLAN | Nein |
| Chipsatz | B650 |
| DisplayPort Anschlüsse | 1 |
| Prozessorfamilie | AMD Ryzen 3 (7xxx), AMD Ryzen 5 (7xxx), AMD Ryzen 9 (7xxx), AMD Ryzen 7 (7xxx), AMD Ryzen 5 (8xxx), AMD Ryzen 7 (8xxx), AMD Ryzen 9 (8xxx), AMD Ryzen 5 (9xxx), AMD Ryzen 7 (9xxx), AMD Ryzen 9 (9xxx) |
| RJ-45 Anschlüsse | 1 |
| VGA Anschlüsse | 0 |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s |
| DVI-D Anschlüsse | 0 |
| Audiokanäle | 7.1 |
| USB Type-C Anschlüsse | 1 |
| USB 3.0 Anschlüsse | 1 |
| Prozessorsockel | AM5 |
| Anzahl Arbeitsspeichersteckplätze | 2 |
| Maximal verbaubarer Arbeitsspeicher | 96GB |
| PCI-Express Steckplätze | 1x PCI-Express 4.0 x16, 2x PCI-Express 4.0 x1 |
| M.2 Anschlüsse | 1 |
| USB 2.0 Anschlüsse | 6 |
| CPU Lüfter Stecker | 1× |
| Audio Chip | Realtek ALC897 Audio Codec |
| Mainboard Formfaktor | Micro-ATX |
| RAID Level | 0, 1, 10 |
| SATA-III Anschlüsse | 4 |
| USB 2.0 Header Anschlüsse | 2 |
| USB 3.0 Header Anschlüsse | 1 |
| 24-Pin ATX Stromanschlüsse | 1× |
| 8-Pin ATX 12V | 1× |
| Chassis Lüfter Stecker | 3× |
