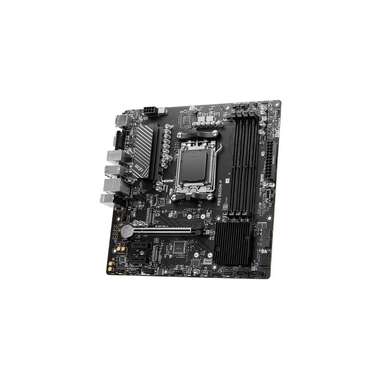

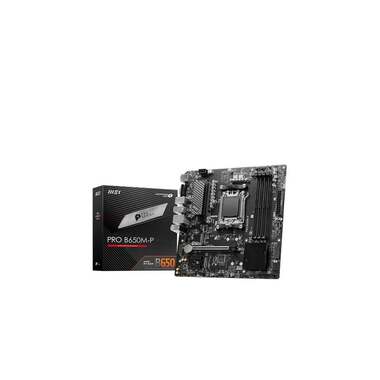

Scheda madre MSI PRO B650M-P
Immagine 1 di 5
Immagine 2 di 5
Immagine 3 di 5
Immagine 4 di 5
Immagine 5 di 5
Porte SATA-III: 4, Porte M.2: 2; WLAN: No, Porte RJ-45: 1, Velocità RJ-45: 2.5 Gbit/s; 1x PCI-Express 4.0 x16/2x PCI-Express 3.0 x1; Socket AM5 con chipset B650 e fattore di forma Micro-ATX; Memoria: DIMM DDR5
Specifiche di base
| Numero articolo | 879572 |
|---|---|
| EAN | 4711377100953 |
| Numero di articolo alternativo | 1673931 |
| Marchio | MSI |
Dimensioni
| Larghezza | 24.38cm |
|---|
Specifiche aggiuntive
| Breite | 24.38cm |
|---|---|
| Tiefe | 24.38cm |
| Arbeitsspeicher-Typ | DDR5 |
| HDMI Anschlüsse | 1 |
| WLAN | Nein |
| 3.5 mm Kopfhöreranschlüsse | 3 |
| Chipsatz | B650 |
| DisplayPort Anschlüsse | 1 |
| Prozessorfamilie | AMD Ryzen 3 (7xxx), AMD Ryzen 5 (7xxx), AMD Ryzen 5 (8xxx), AMD Ryzen 7 (7xxx), AMD Ryzen 7 (8xxx), AMD Ryzen 9 (7xxx), AMD Ryzen 9 (8xxx) |
| RJ-45 Anschlüsse | 1 |
| VGA Anschlüsse | 1 |
| RJ-45 Geschwindigkeit | 2.5 Gbit/s |
| USB 3.1 Anschlüsse | 2 |
| Audiokanäle | 7.1 |
| USB 3.0 Anschlüsse | 2 |
| Prozessorsockel | AM5 |
| Anzahl Arbeitsspeichersteckplätze | 4 |
| Maximal verbaubarer Arbeitsspeicher | 256GB |
| PCI-Express Steckplätze | 1x PCI-Express 4.0 x16, 2x PCI-Express 3.0 x1 |
| M.2 Anschlüsse | 2 |
| USB 2.0 Anschlüsse | 4 |
| Adressierbarer LED Header | 2× |
| CPU Lüfter Stecker | 1× |
| Audio Chip | Realtek ALC897 Audio Codec |
| Mainboard Formfaktor | Micro-ATX |
| RAID Level | 0, 1, 10 |
| RGB LED Header | 2× |
| SATA-III Anschlüsse | 4 |
| USB 2.0 Header Anschlüsse | 4 |
| USB 3.0 Header Anschlüsse | 2 |
| USB 3.1 Header Anschlüsse | 1 |
