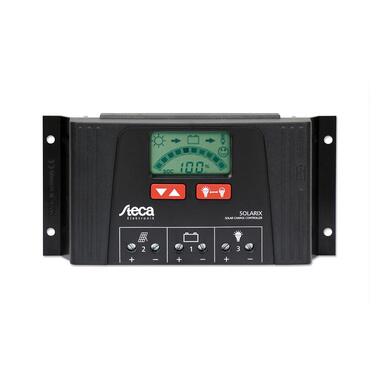

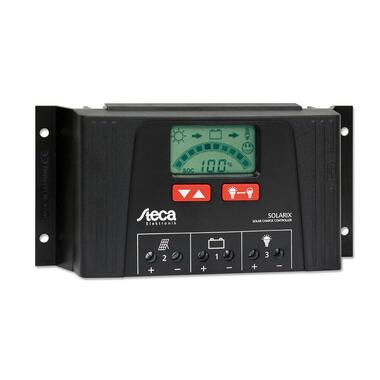

Steca Solar Charge Controller SOLARIX 2525
Picture 1 of 3
Picture 2 of 3
Picture 3 of 3
State of charge determination and modern charging technology for battery maintenance and control; PWM regulation and independent voltage adjustment; Protection class IP30, negative grounding of one or positive grounding of multiple terminals possible; Overcharge and deep discharge protection as well as reverse polarity protection of module, load, and battery; Input voltage always 2 V above battery voltage; Module and load current 25 A, system voltage 12 V (24 V)
Basic specifications
| Article number | 848688 |
|---|---|
| EAN | 4250852801690 |
| Alternative item number | 1236329 |
| Brand | Steca |

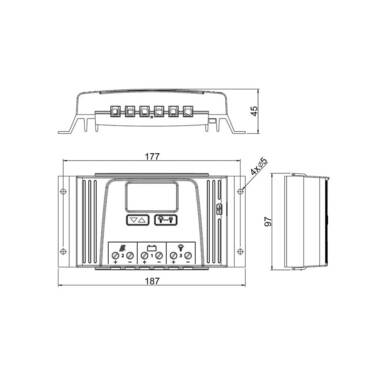

Dimensions
| Height | 9.7cm |
|---|---|
| Width | 18.7cm |
| Weight | 350g |
Additional specifications
| Breite | 187mm |
|---|---|
| Tiefe | 45mm |
| Gewicht | 0.35kg |
| Höhe | 97mm |
| Ausgansspannung bis | 24V |
| Ausgangsspannung von | 12V |
| Eingangsspannung bis | 47V |
| Eingangsspannung von | 13V |
| Reglerart | PWM |
| Max. Eingangsstrom | 25A |
