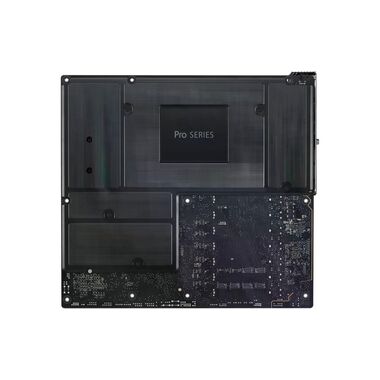

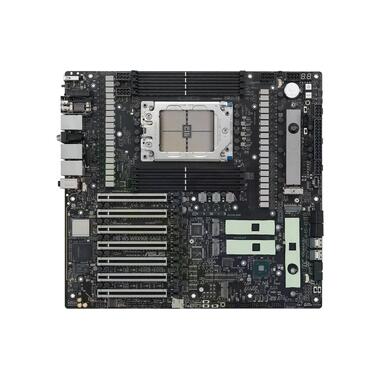

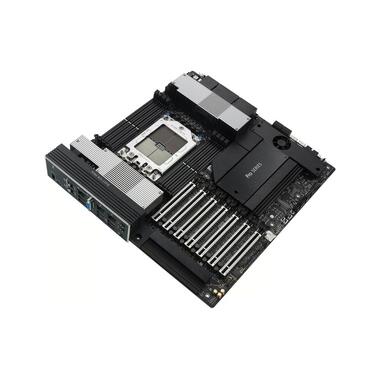

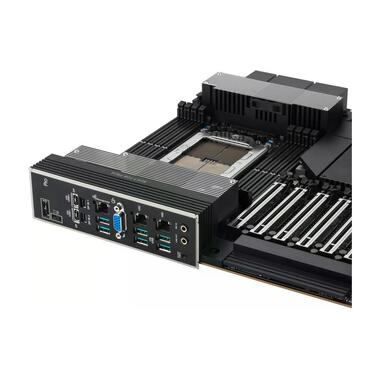

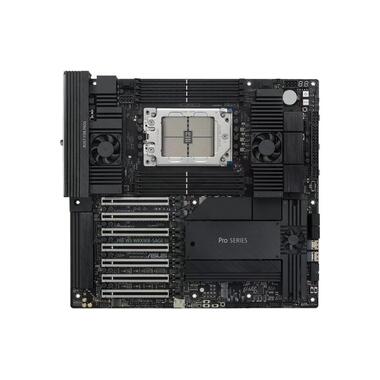

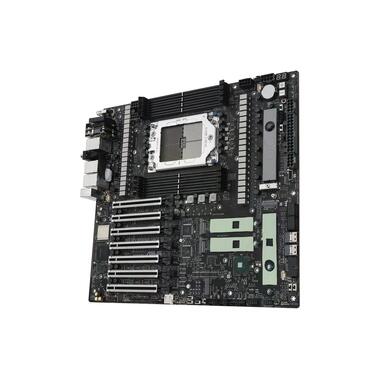

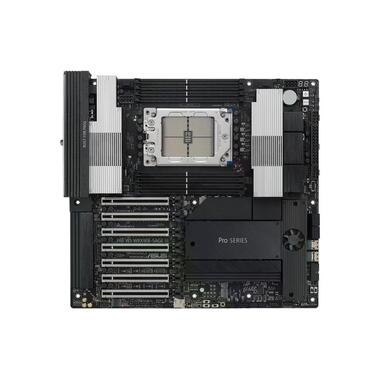

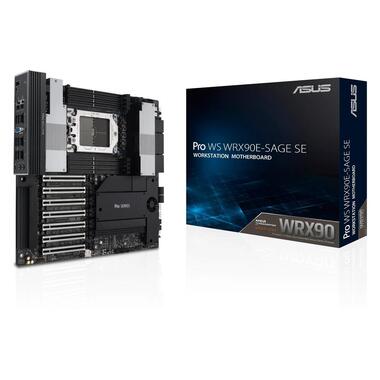

ASUS Mainboard PRO WS WRX90E-SAGE SE
Picture 1 of 11

Picture 2 of 11

Picture 3 of 11

Picture 4 of 11

Picture 5 of 11

Picture 6 of 11

Picture 7 of 11

Picture 8 of 11

Picture 9 of 11

Picture 10 of 11

Picture 11 of 11

AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series processors; Ultra-fast connectivity: Seven PCIe 5.0 x16 slots, two 10-Gbit LAN ports, four M.2 slots, two rear USB4 40 Gbps Type-C and SlimSAS NVMe support; CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules; Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans and M.2 thermal pad; PCIe Q-Release Slim: Remove the graphics card by pulling it directly upwards instead of pressing on a PCIe lock; IPMI remote management at server level and integrated BMC: Hardware and software level with a dedicated LAN port connected to an integrated AST2600 BMC controller, as well as ASUS Control Center Express software for real-time monitoring and management.
Basic specifications
| Article number | 883314 |
|---|---|
| EAN | 4711387441145 |
| Alternative item number | 1666659 |
| Brand | ASUS |
Dimensions
| Width | 30.5cm |
|---|
Additional specifications
| Breite | 30.5cm |
|---|---|
| Tiefe | 33cm |
| Arbeitsspeicher-Typ | DDR5 |
| WLAN | Nein |
| 3.5 mm Kopfhöreranschlüsse | 1 |
| Chipsatz | WRX90 |
| Prozessorfamilie | AMD Ryzen Threadripper PRO |
| RJ-45 Anschlüsse | 3 |
| VGA Anschlüsse | 1 |
| RJ-45 Geschwindigkeit | 10 Gbit/s, 1 Gbit/s |
| USB 3.1 Anschlüsse | 6 |
| USB Type-C Anschlüsse | 2 |
| Prozessorsockel | sTR5 |
| Anzahl Arbeitsspeichersteckplätze | 8 |
| Maximal verbaubarer Arbeitsspeicher | 2000GB |
| Mini DisplayPort Anschlüsse | 2 |
| PCI-Express Steckplätze | 1x PCI-Express 5.0 x8, 6x PCI-Express 5.0 x16 |
| M.2 Anschlüsse | 4 |
| USB 2.0 Anschlüsse | 1 |
| Audio Chip | Realtek ALC 1220P |
| Mainboard Formfaktor | EEB |
| RAID Level | 0, 1, 10, 5 |
| SATA-III Anschlüsse | 4 |
| USB 2.0 Header Anschlüsse | 2 |
| USB 3.0 Header Anschlüsse | 1 |
| USB 3.1 Header Anschlüsse | 1 |
| 24-Pin ATX Stromanschlüsse | 1× |
| 8-Pin ATX 12V | 6× |
