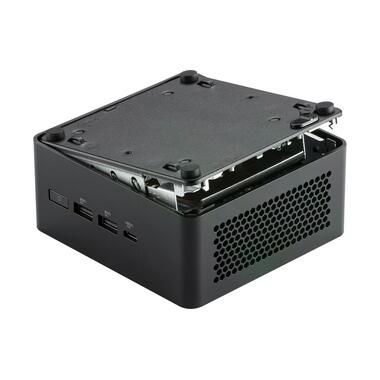

ASUS Barebone NUC 14 Pro Kit NUC14RVHV5 vPro Tall
Picture 1 of 11
Picture 2 of 11
Picture 3 of 11
Picture 4 of 11
Picture 5 of 11
Picture 6 of 11
Picture 7 of 11
Picture 8 of 11
Picture 9 of 11
Picture 10 of 11
Picture 11 of 11
WLAN according to 802.11ax (Wi-Fi 6E), 2.5 GBe LAN, Bluetooth 5.3; No operating system, without RAM and HDD/SSD; 2x HDMI, 2x Thunderbolt 4, 1x USB 3.2 Gen. 2x2 (Type-C), 3x USB 3.1 (Type A), 1x USB 2.0 (Type A); Intel Core Ultra 5 135H 14-core processor (up to 4.6 GHz) with Intel Arc graphics unit and Intel vPro Enterprise; Support for two M.2 SSD (1x M.2 2280 Key M PCIe x4 Gen. 4 NVMe, 1x M.2 2242 Key M PCIe x4 Gen. 4 NVMe) and a SATA hard drive; Supports up to 96 GB DDR5-5600 memory (2x 48 GB)
Basic specifications
| Article number | 877172 |
|---|---|
| EAN | 4711387491751 |
| Alternative item number | 1711172 |
| Brand | ASUS |
Dimensions
| Height | 5.4cm |
|---|---|
| Width | 11.7cm |
| Weight | 570g |
Additional specifications
| Touchscreen | Nein |
|---|---|
| Breite | 117mm |
| Tiefe | 112mm |
| Arbeitsspeicher Bauform | SO-DIMM |
| Arbeitsspeicher Geschwindigkeit | 5600MHz |
| Arbeitsspeicher-Typ | DDR5 |
| Gewicht | 0.57kg |
| HDMI Anschlüsse | 2 |
| Höhe | 54mm |
| WLAN | Ja |
| Gehäuse Bauart | USFF (Ultra Small Form Factor) |
| Anzahl Prozessorkerne | 14 |
| Kühlungstyp | Aktiv (mit Lüfter) |
| Netzteil Nennleistung | 120W |
| Prozessorfamilie | Intel Core Ultra 5 (Series 1) |
| Prozessortyp | Intel Core Ultra 5 135H |
| RJ-45 Anschlüsse | 1 |
| RJ-45 Geschwindigkeit max. | 2.5 Gbit/s |
| USB-Anschlüsse | 1 x USB 2.0 Typ A, 1 x USB 3.2 Gen. 2x2 Typ C, 2 x Thunderbolt 4 (USB Typ C), 3 x USB 3.1 (Gen. 2) Typ A |
| WLAN Standard | IEEE 802.11ax (Wi-Fi 6E) |
| Maximale Taktfrequenz | 4.6GHz |
| Prozessorgrafik | Intel Arc Graphics |
| Prozessorsockel | BGA 2049 |
| 2,5" Laufwerkschächte (intern) | 1 |
| Anzahl Arbeitsspeichersteckplätze | 2 |
| Maximal verbaubarer Arbeitsspeicher | 96GB |
| Prozessor Vorverbaut | Ja |
| M.2 Anschlüsse | 2 |
| SATA-III Anschlüsse | 1 |
| Spannung | 1.2V |
