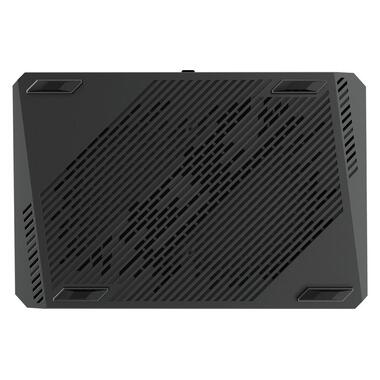

ASUS Barebone NUC 14 Performance Kit NUC14SRKU9B vPro
Picture 1 of 12
Picture 2 of 12
Picture 3 of 12
Picture 4 of 12
Picture 5 of 12
Picture 6 of 12
Picture 7 of 12
Picture 8 of 12
Picture 9 of 12
Picture 10 of 12
Picture 11 of 12
Picture 12 of 12
WLAN according to 802.11ax (Wi-Fi 6E), 2.5 GBe LAN, Bluetooth 5.3; No operating system, without RAM and HDD/SSD; Supports up to 64 GB DDR5-5600 memory (2x 32 GB); Support for three M.2 SSD (3x M.2 2280 PCIe Gen4x4, supports up to 4 TB NVMe SSD); 1x HDMI, 2x DisplayPort 1.4a, 1x Thunderbolt 4, 4x USB 3.2 Gen. 2 (Type-A), 2x USB 2.0 (Type A), 1x 3.5 mm headphone jack, SDXC card reader; Intel Core Ultra 9 185H 16-core processor (up to 5.1 GHz) with Intel vPro Enterprise, Nvidia GeForce RTX 4070 Laptop GPU
Basic specifications
| Article number | 877613 |
|---|---|
| EAN | 4711387611395 |
| Alternative item number | 1795900 |
| Brand | ASUS |
Dimensions
| Height | 27cm |
|---|---|
| Width | 6cm |
| Weight | 2600g |
Additional specifications
| Touchscreen | Nein |
|---|---|
| Breite | 60mm |
| Tiefe | 180mm |
| Arbeitsspeicher Bauform | SO-DIMM |
| Arbeitsspeicher Geschwindigkeit | 5600MHz |
| Arbeitsspeicher-Typ | DDR5 |
| Gewicht | 2.6kg |
| HDMI Anschlüsse | 1 |
| Höhe | 270mm |
| WLAN | Ja |
| Gehäuse Bauart | USFF (Ultra Small Form Factor) |
| Anzahl Prozessorkerne | 16 |
| DisplayPort Anschlüsse | 2 |
| Grafikfamilie | Nvidia GeForce RTX |
| Grafikkarte Modell | Nvidia GeForce RTX 4070 |
| Kühlungstyp | Aktiv (mit Lüfter) |
| Netzteil Nennleistung | 330W |
| Prozessorfamilie | Intel Core Ultra 9 (Series 1) |
| Prozessortyp | Intel Core Ultra 9 185H |
| RJ-45 Anschlüsse | 1 |
| RJ-45 Geschwindigkeit max. | 2.5 Gbit/s |
| USB-Anschlüsse | 1 x Thunderbolt 4 (USB Typ C), 4 x USB 3.1 (Gen. 2) Typ A, 2 x USB 2.0 Typ A |
| WLAN Standard | IEEE 802.11ax (Wi-Fi 6E) |
| Maximale Taktfrequenz | 5.1GHz |
| Prozessorgrafik | Intel Arc Graphics |
| Prozessorsockel | BGA 2049 |
| Anzahl Arbeitsspeichersteckplätze | 2 |
| Maximal verbaubarer Arbeitsspeicher | 64GB |
| Prozessor Vorverbaut | Ja |
| M.2 Anschlüsse | 3 |
