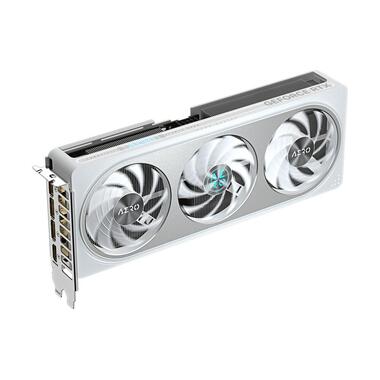

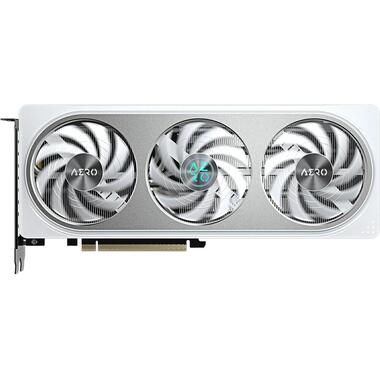

Gigabyte Graphics Card GeForce RTX 5060 Ti AERO OC 8G
Picture 1 of 16

Picture 2 of 16

Picture 3 of 16

Picture 4 of 16

Picture 5 of 16

Picture 6 of 16

Picture 7 of 16

Picture 8 of 16

Picture 9 of 16

Picture 10 of 16

Picture 11 of 16

Picture 12 of 16

Picture 13 of 16

Picture 14 of 16

Picture 15 of 16

Picture 16 of 16

Full-height graphics card in the gaming category (mid-range); Graphics memory size: 8 GB; Max. resolution: 7680 x 4320 (8K UHD); Connections: 1x HDMI, 3x DisplayPort; RGB lighting; Dual BIOS (performance / quiet)
Basic specifications
| Article number | 881088 |
|---|---|
| EAN | 4719331356040 |
| Alternative item number | 1975412 |
| Brand | Gigabyte |
Dimensions
| Height | 11.7cm |
|---|---|
| Length | 28.1cm |
Additional specifications
| Detailfarbe | Weiss |
|---|---|
| Tiefe | 40mm |
| Länge | 281mm |
| Max. Auflösung | 7680 x 4320 (8K UHD) |
| Höhe | 117mm |
| Grafikfamilie | Nvidia GeForce RTX |
| Grafikkarte Modell | Nvidia GeForce RTX 5060 Ti |
| Grafikspeicher-Typ | GDDR7 |
| AMD Repoting | Nein |
| Anzahl Shader | 4608× |
| Formfaktor | Full-Height |
| GPU Speicherschnittstelle | 128bit |
| Grafikspeicher Grösse | 8GB |
| Höhe Slot-Blech | Full-Height |
| Max. gleichzeitige Displays | 4 |
| Mindestanforderung Netzteil | 650W |
| Nvidia Reporting | Ja |
| Schnittstelle Grafikkarte | PCI Express 5.0 |
| Slotblech Belegung | Dual Slot |
| GPU Taktfrequenz Standard | 2647MHz |
| Video-Anschlüsse | 1 x HDMI, 3 x DisplayPort |
| Stromanschlüsse | 1 x 8-Pin |
