Ubiquiti VPN Router EdgeRouter 6P ER-6P
Picture 1 of 9
Picture 2 of 9
Picture 3 of 9
Picture 4 of 9
Picture 5 of 9
Picture 6 of 9
Picture 7 of 9
Picture 8 of 9
Picture 9 of 9

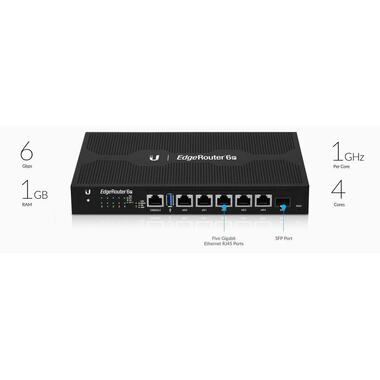

5x Gigabit RJ45 Routing Ports (with 5x 24V passive PoE); 1x Gigabit SFP Port; Processes up to 3.4 million packets per second; Supported and managed by UNMS (Ubiquiti Network Management System); Quiet, fanless operation; Rack mounting possible with ER-RMKIT (see accessories)
Basic specifications
| Article number | 882707 |
|---|---|
| EAN | 817882020640 |
| Alternative item number | 710690 |
| Brand | Ubiquiti |
Dimensions
| Height | 3.11cm |
|---|---|
| Width | 22.9cm |
Additional specifications
| Breite | 229mm |
|---|---|
| Tiefe | 136.5mm |
| Höhe | 31.1mm |
| Leistungsaufnahme Betrieb | 16W |
| Stromversorgung | 24 V |
| Anzahl Prozessorkerne | 4 |
| RJ-45 Anschlüsse | 5 |
| Taktfrequenz | 1GHz |
| Verbauter Arbeitsspeicher | 1GB |
| WLAN Standard | kein WLAN |
| Frequenzband | KeinesGHz |
| Anwendungsbereich | Small/Medium Business |
| Anzahl PoE Ports | 5 |
| PoE Budget | 0W |
| PoE In/Out | PoE OUT vorhanden |
| PoE Standard | 24V passiv PoE |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s |
| SFP Anschlüsse | 1 |
| SFP Geschwindigkeit | 10/100/1000 Mbit/s |
| WAN Anschlüsse | 2 |
| WLAN Geschwindigkeit Max. | kein WLANMbit/s |
| Weitere Informationen | Verarbeitet bis zu 3,4 Millionen Pakete pro Sekunde. 5x 24V passive PoE Ports |
| Antennenanschluss | Kein externer Anschluss |
| Mesh | Nein |
| MU-MIMO | Nein |
| Sicherheits Features | x, SPI-Firewall, VPN-Unterstützung |
| USB 3.1 Anschlüsse | 0 |
| WLAN Geschwindigkeit 2.4GHz | kein WLANMbit/s |
| WLAN Geschwindigkeit 5GHz | kein WLANMbit/s |
| WLAN on/off Schalter | Nein |
| WPS | Nein |
| Zusatzfunktionen | 19" Rack Montage, IPsec-VPN, WAN Load Balancing, WAN Failover, SFP Port, IGMP Snooping, Quality of Service (QoS), Lüfterlos, Metallgehäuse, Managebar |
| USB 3.0 Anschlüsse | 1 |
| USB 2.0 Anschlüsse | 0 |
| WAN zu LAN Durchsatz | 2000Mbit/s |
| SFP+ Anschlüsse | 0 |
| WLAN Geschwindigkeit 60GHz | kein WLANMbit/s |
