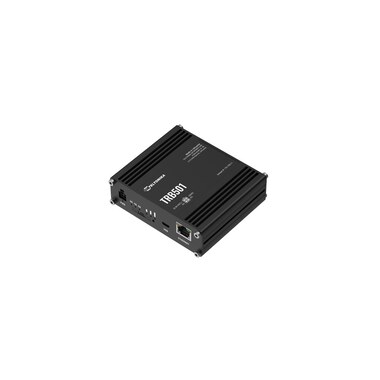

Teltonika TRB501 Industrial 5G Gateway
Picture 1 of 8
Picture 2 of 8
Picture 3 of 8
Picture 4 of 8
Picture 5 of 8
Picture 6 of 8
Picture 7 of 8
Picture 8 of 8
Operating system RutOS (OpenWrt-based); Supports 5G Sub-6 GHz SA/NSA as well as 4G LTE and 3G; 1× RJ45 Ethernet port with up to 2.5 Gbps; 4× SMA connectors for cellular antennas; 1× Mini-SIM slot (2FF); Operating temperature range from −40 °C to +75 °C
Basic specifications
| Article number | 888310 |
|---|---|
| EAN | 4779051845804 |
| Alternative item number | 2033974 |
| Brand | Teltonika |
Dimensions
| Height | 3cm |
|---|---|
| Width | 10cm |
Additional specifications
| Höhe | 30mm |
|---|---|
| Breite | 100mm |
| Anzahl Prozessorkerne | 1 |
| MIMO | Ja |
| Frequenzband | KeinesGHz |
| RJ-45 Geschwindigkeit | 1/2.5 Gbit/s |
| WLAN Standard | kein WLAN |
| WLAN Geschwindigkeit Max. | kein WLANMbit/s |
| Taktfrequenz | 1.5GHz |
| PoE Budget | 0W |
| PoE Standard | 9-30V passiv PoE |
| RJ-45 Anschlüsse | 1 |
| PoE In/Out | PoE IN vorhanden |
| WAN Anschlüsse | 0 |
| Basisanschluss | Mobilfunk |
| SIM-Kartengrösse | Mini-SIM (2FF) |
| Antennenanschluss | SMA |
| Modemtyp | 5G |
| Leistungsaufnahme Betrieb | 5W |
| Anzahl PoE Ports | 0 |
| Anwendungsbereich | Business |
| SFP Geschwindigkeit | Keine SFP Ports |
| USB 2.0 Anschlüsse | 1 |
| Verbauter Arbeitsspeicher | 512GB |
| SFP Anschlüsse | 0 |
| Mobilfunk Standard | 3G (UMTS), 4G/LTE, 5G |
| Zusatzfunktionen | RADIUS, Network Monitoring, Layer 3, IPsec-VPN, SSL VPN, WAN Load Balancing, WAN Failover, Firewall, DMZ, Cloudmanagement, TR-069, LTE, Hotspot, Quality of Service (QoS), Web Filtering, Lüfterlos, Metallgehäuse, Bridge, Managebar, VLAN |
| Tiefe | 93.4mm |
| Sicherheits Features | SPI-Firewall, VPN-Unterstützung |
