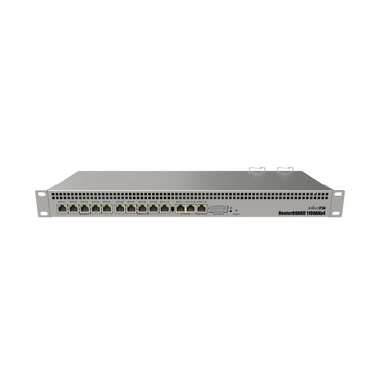

MikroTik VPN Router RB1100AHX4
Picture 1 of 5
Picture 2 of 5
Picture 3 of 5
Picture 4 of 5
Picture 5 of 5
Two redundant power supplies (with -48V DC Telecom Power and 802.3at/af support); 13x Gigabit Ethernet ports and 4x WAN; 1U rackmount chassis, serial RS232 port; Supports IPsec hardware acceleration (up to 2.2 Gbps with AES128); Annapurna Alpine AL21400 CPU with four Cortex A15 cores, each clocked at 1.4 GHz
Basic specifications
| Article number | 880322 |
|---|---|
| EAN | 4752224002662 |
| Alternative item number | 699994 |
| Brand | MikroTik |
Dimensions
| Height | 4.4cm |
|---|---|
| Width | 44.2cm |
Additional specifications
| Breite | 442mm |
|---|---|
| Tiefe | 176mm |
| Höhe | 44mm |
| Leistungsaufnahme Betrieb | 20W |
| Anzahl Prozessorkerne | 4 |
| RJ-45 Anschlüsse | 13 |
| Taktfrequenz | 1.4GHz |
| Verbauter Arbeitsspeicher | 1GB |
| WLAN Standard | kein WLAN |
| Frequenzband | KeinesGHz |
| Anwendungsbereich | Small/Medium Business, Enterprise |
| Anzahl PoE Ports | 0 |
| PoE Budget | 0W |
| PoE In/Out | PoE IN vorhanden |
| PoE Standard | 802.3af/at Class 4 Type 2 PoE+ 30 Watt |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s |
| SFP Geschwindigkeit | Keine SFP Ports |
| WAN Anschlüsse | 4 |
| WLAN Geschwindigkeit Max. | kein WLANMbit/s |
| Weitere Informationen | inkl. RouterOS Level 6 Lizenz |
| Antennenanschluss | Kein externer Anschluss |
| Mesh | Nein |
| Sicherheits Features | x |
| WLAN Geschwindigkeit 2.4GHz | kein WLANMbit/s |
| WLAN Geschwindigkeit 5GHz | kein WLANMbit/s |
| Zusatzfunktionen | 19" Rack Montage, Redundante Stromversorgung, IPsec-VPN, WAN Load Balancing, Firewall, PoE-Powered, Quality of Service (QoS), Metallgehäuse |
