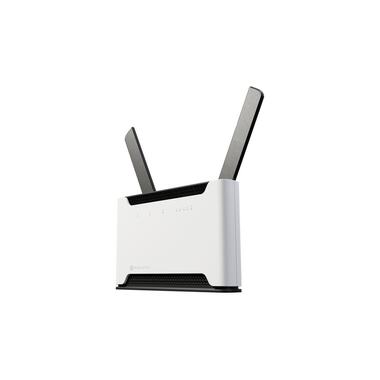

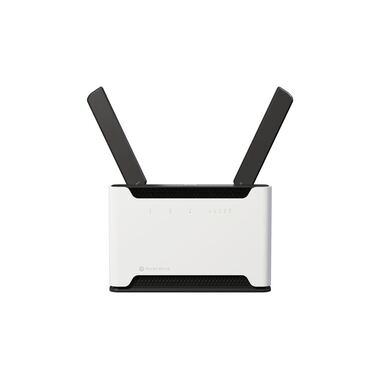

MikroTik LTE Router Chateau LTE18 ax
Picture 1 of 5
Picture 2 of 5
Picture 3 of 5
Picture 4 of 5
Picture 5 of 5
The fastest LTE modem, 2x optional external antenna connections; 1x 2.5 Gigabit port, 3x Gigabit ports; Frequency band: 5 GHz; 2.4 GHz, for up to 1774 Mbit/s; WLAN standard: IEEE 802.11ac (Wi-Fi 5), IEEE 802.11n (Wi-Fi 4), IEEE 802.11g (Wi-Fi 3), IEEE 802.11b (Wi-Fi 2), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac Wave 2, IEEE 802.11a (Wi-Fi 1); Base connection: Mobile, WAN connections: 0, RJ-45 connections: 5, SFP connections: 0; Powerful 1.8 GHz quad-core CPU
Basic specifications
| Article number | 882067 |
|---|---|
| EAN | 4752224007889 |
| Alternative item number | 1429152 |
| Brand | MikroTik |
Dimensions
| Height | 15.6cm |
|---|---|
| Width | 24cm |
Additional specifications
| WLAN Geschwindigkeit 2.4GHz | 574Mbit/s |
|---|---|
| Höhe | 156mm |
| Breite | 240mm |
| Anzahl Prozessorkerne | 4 |
| Antennengewinn Max. | 6dBi |
| Frequenzband | 5, 2.4GHz |
| WPS | Nein |
| WLAN on/off Schalter | Nein |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s, 2.5 Gbit/s |
| WLAN Standard | IEEE 802.11ac (Wi-Fi 5), IEEE 802.11n (Wi-Fi 4), IEEE 802.11g (Wi-Fi 3), IEEE 802.11b (Wi-Fi 2), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac Wave 2, IEEE 802.11a (Wi-Fi 1) |
| WLAN Geschwindigkeit Max. | 1774Mbit/s |
| WLAN Geschwindigkeit 5GHz | 1200Mbit/s |
| Taktfrequenz | 1.8GHz |
| PoE Budget | 0W |
| PoE Standard | Kein PoE |
| MU-MIMO | Ja |
| RJ-45 Anschlüsse | 5 |
| PoE In/Out | Nicht vorhanden |
| WAN Anschlüsse | 0 |
| Basisanschluss | Mobilfunk |
| SIM-Kartengrösse | Micro-SIM (3FF) |
| Antennenanschluss | SMA, Antennen Intern vor verbaut |
| Modemtyp | 4G/LTE |
| Leistungsaufnahme Betrieb | 19W |
| Anzahl PoE Ports | 0 |
| Anwendungsbereich | Small/Medium Business, Home |
| SFP Geschwindigkeit | Keine SFP Ports |
| WLAN Verschlüsselung | WPA3-PSK (WPA3-Personal) |
| USB 2.0 Anschlüsse | 1 |
| Verbauter Arbeitsspeicher | 1GB |
| SFP Anschlüsse | 0 |
| Mobilfunk Standard | 4G/LTE |
| Zusatzfunktionen | IPsec-VPN, Quality of Service (QoS), VLAN |
| Tiefe | 44mm |
| Sicherheits Features | x, VPN-Unterstützung |
