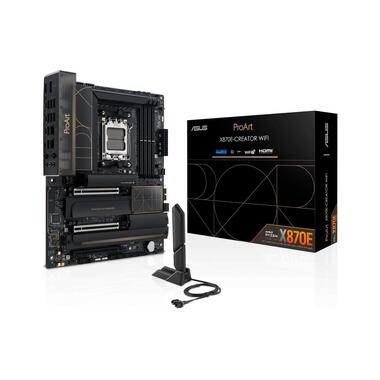

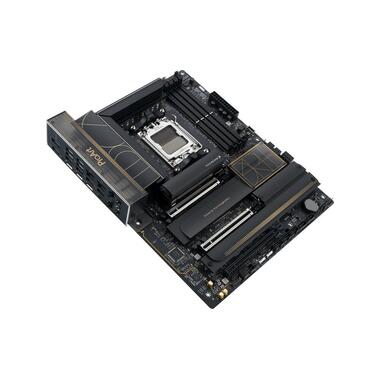

ASUS Mainboard ProArt X870E-Creator WIFI
Picture 1 of 7
Picture 2 of 7
Picture 3 of 7
Picture 4 of 7
Picture 5 of 7
Picture 6 of 7
Picture 7 of 7
SATA-III ports: 4, M.2 ports: 4; Wi-Fi: Yes, RJ-45 ports: 2, RJ-45 speed: 10 Gbit/s/2.5 Gbit/s; 1x PCI-Express 4.0 x4/2x PCI-Express 5.0 x16; AM5 socket with X870E chipset and ATX form factor; Protection: SafeSlot, ESD Guards, Digi+ VRM and LANGuard; Memory: DIMM DDR5
Basic specifications
| Article number | 881693 |
|---|---|
| EAN | 4711387730775 |
| Alternative item number | 1772367 |
| Brand | ASUS |
Dimensions
| Width | 24.4cm |
|---|
Additional specifications
| Breite | 24.4cm |
|---|---|
| Tiefe | 30.5cm |
| Arbeitsspeicher-Typ | DDR5 |
| HDMI Anschlüsse | 1 |
| WLAN | Ja |
| Chipsatz | X870E |
| Prozessorfamilie | AMD Ryzen 3 (7xxx), AMD Ryzen 5 (7xxx), AMD Ryzen 9 (7xxx), AMD Ryzen 7 (7xxx), AMD Ryzen 5 (8xxx), AMD Ryzen 7 (8xxx), AMD Ryzen 9 (8xxx), AMD Ryzen 5 (9xxx), AMD Ryzen 7 (9xxx), AMD Ryzen 9 (9xxx) |
| RJ-45 Anschlüsse | 2 |
| RJ-45 Geschwindigkeit | 10 Gbit/s, 2.5 Gbit/s |
| USB 3.1 Anschlüsse | 7 |
| Audiokanäle | 7.1 |
| USB Type-C Anschlüsse | 3 |
| Prozessorsockel | AM5 |
| Anzahl Arbeitsspeichersteckplätze | 4 |
| Maximal verbaubarer Arbeitsspeicher | 192GB |
| PCI-Express Steckplätze | 1x PCI-Express 4.0 x4, 2x PCI-Express 5.0 x16 |
| M.2 Anschlüsse | 4 |
| USB 2.0 Anschlüsse | 1 |
| CPU Lüfter Stecker | 1× |
| Audio Chip | Realtek ALC S1220A |
| Mainboard Formfaktor | ATX |
| RAID Level | 0, 1, 10, 5 |
| SATA-III Anschlüsse | 4 |
| USB 2.0 Header Anschlüsse | 3 |
| USB 3.0 Header Anschlüsse | 1 |
| 24-Pin ATX Stromanschlüsse | 1× |
| 8-Pin ATX 12V | 2× |
| Chassis Lüfter Stecker | 5× |
